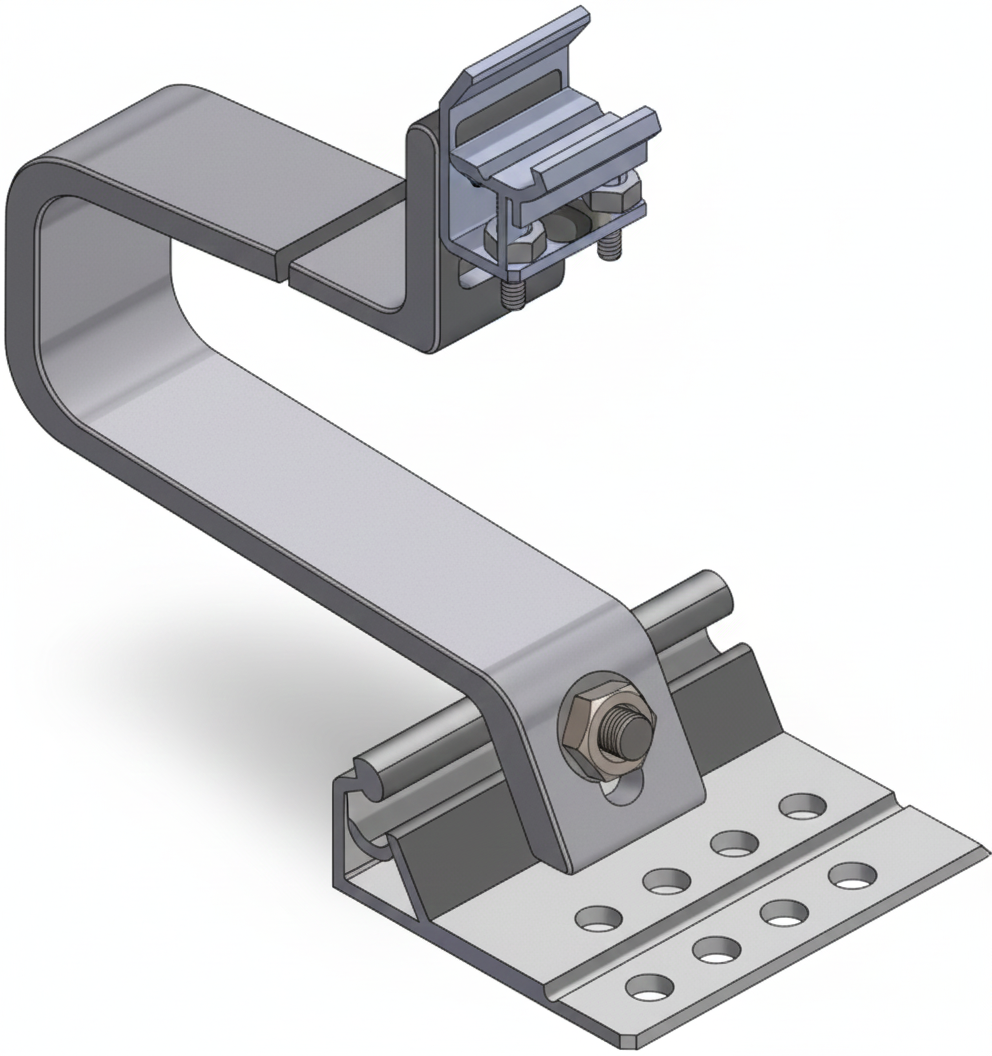

XT40CL-EL roof hook 40 x 8, raised, Click

aluminium roof hook for pan tile roofs with thick concrete tiles, connection to mounting rails X40 and X50 with click fast fixation, rail fixation horizontal, height-adjustable, bracket: 40 x 10 mm, extended length, EN AW-6005A, max. 1.33 kN (136 kg), 2-fold-adjustable on base plate 105 x 90 mm, EN AW-6063 T66, opening for tile: 65 mm, offset from rafter: 42–54 mm, pre-assembled, bolting hardware stainless steel A2-70, TARIC 7616.9990, HTS 7616.99.5090, origin: Poland
